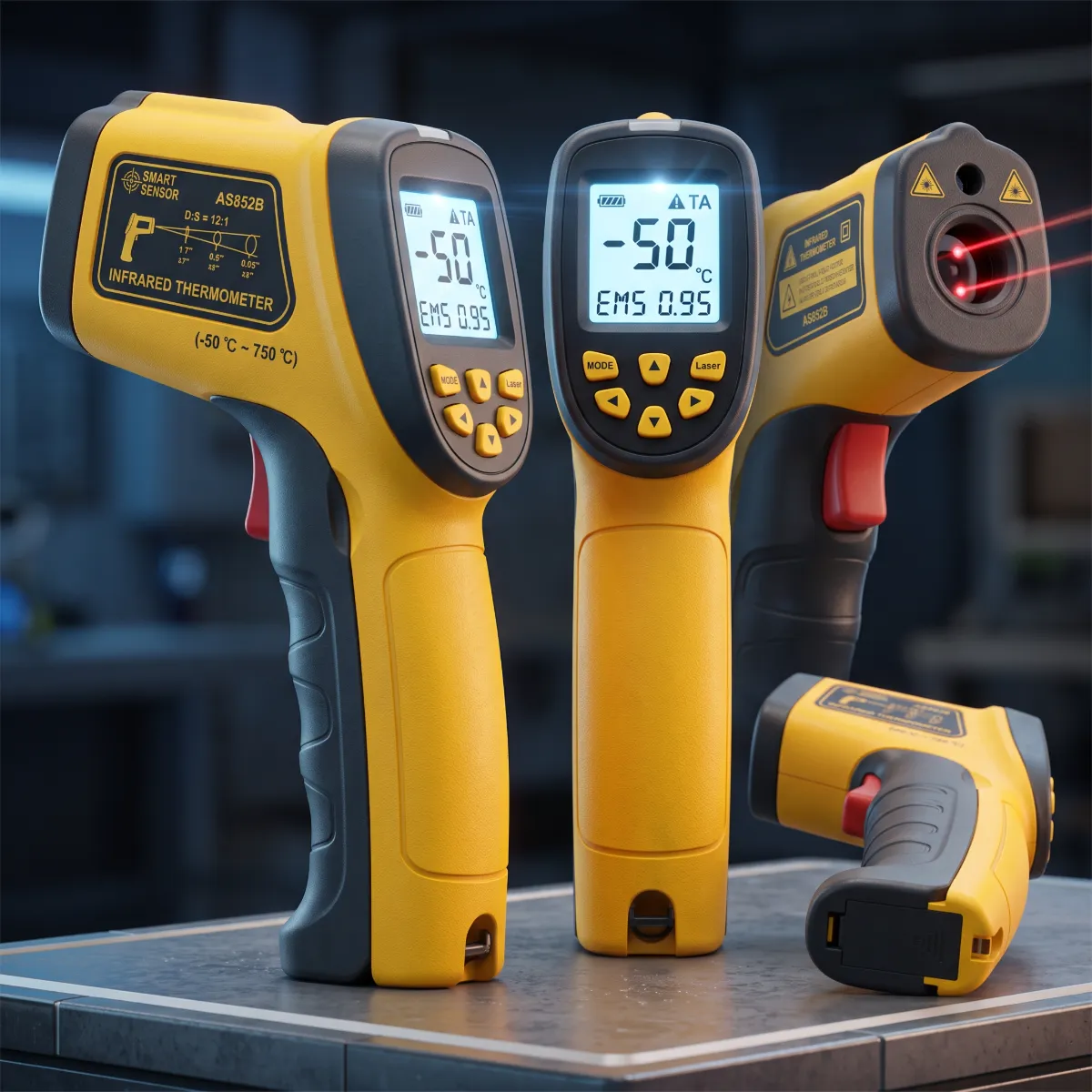

Infrared Thermometer AS852B Smart Sensor( -50℃~750℃)

The most basic design consists of a lens to focus the Infrared Thermometer AS852B (IR) energy onto a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.

Specification of Infrared Thermometer AS852B

Temperature Range

-50℃~750℃(-58℉~1382℉)

Accuracy

±2%or±2℃

Distance Spot Ratio

12:1

Emissivity

0.10~1.00 adjustable

Resolution

0.1℃or 0.1℉(<1000℃)

Wavelength & Response

Time

(8-14)um&500ms

Repeatability

±1%or±0.1℃

℃/℉Selection

√

Data Hold Function

√

Laser Target Pointer

√

Backlight Display

√

Auto Power Off

√

PACKING INFORMATION

Power

9V battery

Product Net Weight

170g

Product Size

175*100*49mm

Packing Style

Gift box

Standard Quantity Per Carton

24

Standard Carton Size

46*45.5*55cm

Standard Carton Gross Weight

19.5KG
